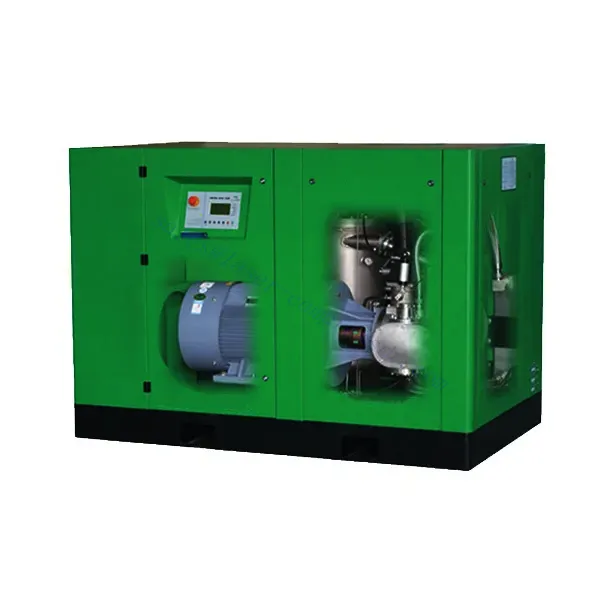

CM/PV Series Oil-Free Laser Compressor

As one of the laser compressor manufacturers, suppliers, and exporters of mechanical products, We offer laser compressor and many other products.

Please get in touch with us for details.

Mail:[email protected]

Manufacturer supplier exporter of laser compressor.

CM/PV Series Oil-Free Laser Compressor

A laser compressor is a device that increases the pressure of a gas (usually nitrogen) to a level suitable for use in a laser. The compressed gas is used to cool the laser tube, which helps extend its life and improve its performance.

There are two main types of laser compressors: reciprocating and screw.

Reciprocating compressors use pistons to compress gas, while screw compressors use rotating screws. Reciprocating compressors are usually less expensive than screw compressors, but they are also less efficient. Screw compressors are more expensive than reciprocating compressors, but they are also more efficient.

Laser compressor is an important part of many laser systems. They help to improve the performance and prolong the life of the laser tube. By learning about the different types of laser compressors and the factors to consider when choosing, you can choose the right compressor for your needs.

CM/BV Series Oil-Free Laser Compressor Parameters:

Model  Work pressure FAD Power Noise Weight

Pipe diameters of cooling water inlet

Cooling fan power Dimension Air outlet
and outlet
MPa Psi m³/min cfm kW HP dB(A) kg  Water entering32℃ L×W×H
T/h mm
CM08PVF 0.8 116 0.45-1.15 16-41 7.5 10 58 630 DN25 2 1550×775×1445
1 145 0.41-1.02 14-36 500 1350×774×1150
CM11PVF 0.8 116 0.62-1.55 22-55 11 15 58 650 DN25 2.5 1550×775×1445
1 145 0.53-1.32 19-47 520 1350×774×1150
1.25 181 0.48-1.02 17-36
CM15PVF 0.8 116 0.96-2.40 34-85 15 20 63 900 DN25 3.5 1900×1000×1635
1 145 0.85-2.12 30-75
750 1680×1000×1335
1.25 181 0.64-1.61 23-57
CM18PVF 0.8 116 1.24-3.10 44-109 18.5 25 65 970 DN25 4 1900×1000×1635
1 145 1.05-2.62 37-93
820 1680×1000×1335
1.25 181 0.85-2.13 30-75
CM22PVF 0.8 116 1.40-3.50 49-124 22 30 65 1000 DN25 5 1900×1000×1635
1 145 1.25-3.13 44-111
850 1680×1000×1335
1.25 181 1.04-2.61 37-92
CM30PVF 0.8 116 2.00-5.00 71-177 30 40 66 1200 DN40 7 1950×1050×1780 1 1/2ʺ
1 145 1.68-4.20 59-148
1300 1900×1050×1430
1.25 181 1.52-3.18 54-112
CM37PVF 0.8 116 2.44-6.10 86-215 37 50 67 1230 DN40 9 1950×1050×1780 1 1/2ʺ
1 145 2.09-5.22 74-184
1320 1900×1050×1430
1.25 181 1.92-4.81 68-170
CM45PVF 0.8 116 3.12-7.80 110-275 45 60 68 1930 DN40 10 3040×1280×1800
1 145 2.45-6.13 87-216
1430 2200×1350×1530
1.25 181 2.26-5.65 80-200
CM55PVF 0.8 116 3.84-9.60 136-339 55 75 70 2050 DN40 12 3040×1280×1800
1 145 3.44-8.60 121-304
1550 2200×1350×1530
1.25 181 2.97-7.42 105-262
CM75PVF 0.8 116 5.16-12.90 182-455 75 100 73 2450 DN40 18 3040×1280×1800
1 145 4.57-11.42 161-403
1790 2200×1350×1530
1.25 181 3.93-9.83 139-347
CM90PV 0.8 116 6.52-16.30 230-576 90 125 73 2160 DN40 20 2500×1400×1580 2 1/2ʺ
1 145 5.81-14.52 205-513
1.25 181 4.92-12.30 174-434
CM110PV 0.8 116 7.76-19.40 274-685 110 150 78 2270 DN40 24 2500×1400×1580 2 1/2ʺ
1 145 6.76-16.90 239-597
1.25 181 6.04-15.10 213-533
CM132PV 0.8 116 8.88-22.21 314-784 132 180 78 2350 DN50 30 2500×1400×1580 2 1/2ʺ
1 145 8.15-20.38 288-720
1.25 181 7.31-18.29 258-646
CM160PV 0.8 116 11.54-28.85 407-1019 160 220 78 3720 DN80 35 3100×1700×2090 DN100
1 145 9.81-24.52 346-866
1.25 181 8.87-22.17 313-783
CM200PV 0.8 116 14.65-36.63 517-1293 200 270 78 3750 DN80 43 3100×1700×2090 DN100
1 145 13.10-32.70 463-1155
1.25 181 11.09-27.72 392-979
CM250PV 0.8 116 17.15-42.88 606-1514 250 340 78 3900 DN80 53 3100×1700×2090 DN100
1 145 15.60-39.00 551-1377
1.25 181 13.87-34.64 490-1223
CM320PV 0.8 116 23.64-59.10 835-2087 320 430 80 4850 DN100 60 3600×2800×2000 DN125
1 145 21.40-53.50 756-1889
1.25 181 19.30-48.25 681-1704

CM/BV Series Oil-Free Laser Compressor Feature:

The new model is 15%-20% more energy efficient than piston air compressors. After the piston ring and cylinder body wear, it saves 30%-40% more power than the piston air compressor. Two years of saving is equivalent to the cost of buying a machine.

Box design, no vibration, low noise, small volume.

Fewer consumables, low cost.

Environmental protection, oil-free design, ISO08573-1 oil-free certification.

Isothermal compression, low exhaust temperature, and low water content of compressed air.



We are one of the best food compressor suppliers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
